Radiological classifications and assessment scales for Achilles tendinopathy

Introduction

The incidence of disorders of the foot and ankle has increased in recent years as a result of the growth in sports activities⁽¹⁾. Disease conditions of the Achilles tendon account for a very important percentage of these disorders, and can result in great disability and worsening of patient quality of life.

At present, radiological evaluation of Achilles tendinopathy is very important as a complement to the clinical information. Different radiological classifications have been proposed, which ideally should afford data on the disease in question, as well as contribute prognostic information to help decide which treatment to provide according to the stage of the tendinopathy.

The clinical assessment scales have been developed with the same purpose in mind. These are evaluating tools used to measure different characteristics of the disease with a view to assessing the effects of treatment upon patient health. At least 139 scales have been used to evaluate the clinical outcomes in patients with disorders of the ankle and foot⁽²⁾. Of these scales, only some can be used to evaluate Achilles tendinopathy, and there is no clear consensus as to which clinical assessment scale should be used on a systematic basis^(3,4).

The present study offers a review of the radiological classifications of Achilles tendinopathy, and of the clinical assessment scales applicable to such disease.

Radiological classifications of Achilles tendinopathy

Although studies have been made of the prognostic usefulness of many radiological variables in Achilles tendinopathy, there is no agreement as to which of them are important enough to serve as the basis for a universal classification system⁽⁴⁾. For this reason, different classification models have been proposed depending on the ra diological variable analysed — though none of them can be taken to constitute a clear reference standard. Table 1 provides a summarised comparison of the classifications which are described below.

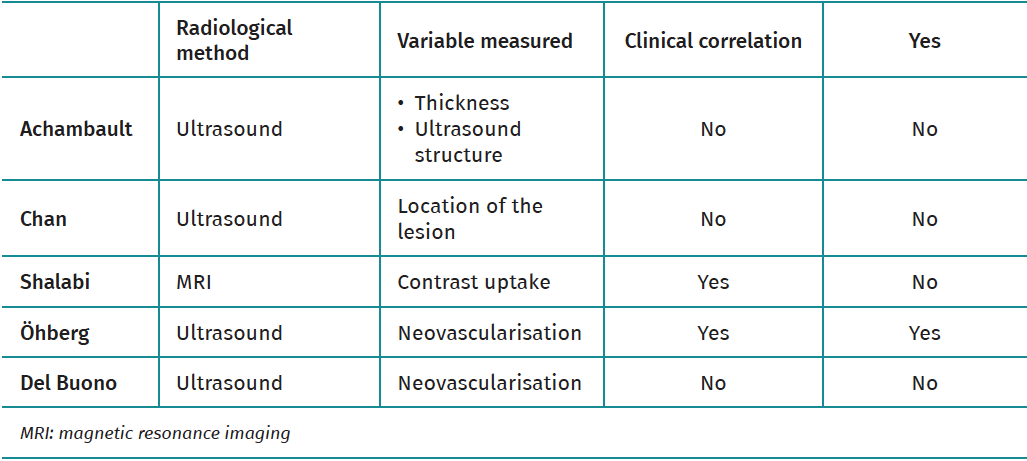

Table 1. Comparison of the radiological classifications of Achilles tendinopathy

Archambault ultrasound classification⁽⁵⁾

The authors of this classification conducted a retrospective review of the ultrasound findings in a series of consecutive cases diagnosed with non-insertional Achilles tendinopathy. The findings were classified into three types according to the thickness of the tendon and its ultrasound appearance over the long axis:

• Grade I. Tendon of normal appearance: parallel tendon margins and fibrillar ultrasound structure.
• Grade II. Thickened tendon: non-parallel margins, increased tendon thickness and fibrillar structure.
• Grade III. Tendon with hypoechoic zones and altered fibrillar ultrasound structure, with or without tendon thickening.

This classification was not found to be useful from the prognostic perspective, since no significant differences were observed between the ultrasound grades and the persistence of symptoms following conservative treatment at 24 months of follow-up⁽⁵⁾.

Chan classification⁽⁶⁾

This is an anatomical classification that divides tendinopathies according to the affected region of the tendon. In this respect, three zones of the Achilles tendon are distinguished based on sagittal MRI images or ultrasound images over the long axis:

• Intramuscular tendon: muscle fibers are seen to be still inserted within the trajectory of the tendon.
• Free tendon: absence of muscle fibers; this zone in turn can be divided into three subzones of similar length:
  – Proximal.
  – Middle.
  – Distal.
• Calcaneal insertion: at the confluence between the tendon and the posterior calcaneal tuberosity.

The publication in which this classification was described was not accompanied by a case series to demonstrate its clinical correlation or prognostic value. The clinical usefulness of this tool is therefore limited.

Öhberg score of tendon neovascularisation⁽⁷⁾

It has often been postulated that the appearance of neovascularisation in a pathological tendon is related to the development of pain^(8,9). Different studies have attempted to quantify the degree of neovascularisation with a view to assessing the effectiveness of different therapies^(7,9). The Öhberg score is the most widely used classification and recognises 5 types of tendon according to the number of neovessels observed in the ultrasound study:

• Grade 0: no intratendon vascularisation.
• Grade 1+: 1 or 2 small vessels in the anterior portion of the tendon.
• Grade 2+: 2 vessels located at any point of the tendon.
• Grade 3+: 3 vessels located at any point of the tendon.
• Grade 4+: > 3 vessels located at any point of the tendon.

Del Buono classification of tendon neovascularisation⁽⁶⁾

This is an ultrasound classification of the grade of neovascularisation of the pathological tendon:

• Grade I: 1 altered vessel in the tendon.
• Grade II: 2 altered vessels in the tendon.
• Grade III: neovascularisation enveloping < 50% of the thickness of the tendon.
• Grade IV: neovascularisation enveloping 50-90% of the thickness of the tendon.
• Grade V: neovascularisation enveloping > 90% of the thickness of the tendon.

This again is a morphological classification in which the authors conducted no clinical or prognostic validation.

Shalabi magnetic resonance imaging classification⁽¹⁰⁾

This classification groups Achilles tendinopathy according to the uptake of the pathological tendon following a gadolinium contrast administration. Four degrees of tendon involvement are considered based on the MRI data:

• Grade 0: no enhanced uptake.
• Grade I: mildly enhanced intrasubstance uptake.
• Grade II: moderately enhanced intrasubstance uptake.
• Grade III: greatly enhanced intrasubstance and peritendinous uptake.

Although this classification was not found to be of prognostic value, it did show an acceptable clinical correlation, since close to 85% of all patients with some degree of tendon involvement before surgery presented lesser involvement at two years of follow-up, with associated clinical improvement⁽¹⁰⁾.

Achilles tendinopathy assessment scales

The measurement of outcomes in orthopaedic surgery and traumatology has become a crucial aspect for knowing the effectiveness of the applied treatments and for publishing objective data in clinical research. In most of the existing assessment scales, the subjective data from the patients themselves are very important, since they have been shown to be better indicators of the final outcome than questionnaires based only on objective clinical data⁽¹¹⁾.

At present, the most widespread recommendation in assessing the outcomes of any disease process is to use a generic health questionnaire and another questionnaire specific of the disease in question⁽¹¹⁾. A number of questionnaires have been developed that specifically evaluate the function of the ankle and hindfoot, and there is even a specific questionnaire for evaluating Achilles tendinopathy⁽¹²⁾, which has become the reference tool for measuring the outcomes of this disease.

Evaluation of health condition

The SF-12⁽¹³⁾ (Table 2), as the short version of the SF-36^(14,15), is a good example of a generic questionnaire, since it offers a general view of the patient health condition. Furthermore, it can be completed easily and rapidly. The scores of each of the dimensions of the SF-12 range between 0-100, where 100 indicates optimum health and 0 is the poorest score possible^(14,15).

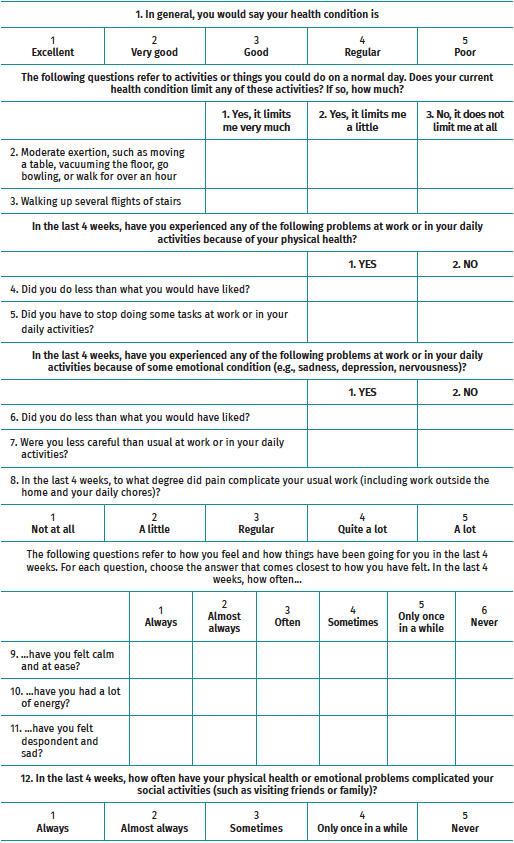

Table 2. SF-12

Specific evaluation of foot and ankle disorders

Foot and Ankle Ability Measure (FAAM)⁽¹⁶⁾

The FAAM is a generic scale used for the evaluation of foot and ankle disorders, and exclusively measures subjective aspects of the disease. It is especially focused on individuals with great physical demands, and so has been mainly used in athletes with chronic ankle instability. This tool consists of 29 items divided into two parts: gestures related to activities of daily living (21 items) and aspects gestures of sports activity (8 items). The FAAM has not been validated in Spanish or for specifically evaluating disorders of the Achilles tendon.

American Orthopaedic Foot and Ankle Society (AOFAS)⁽¹⁷⁾ (Table 3)

Originally published in 1994, this is the most widely used foot and ankle scale in clinical research⁽¹⁸⁾. It consists of 4 classification systems, each adapted to a different anatomical area, namely the ankle-hindfoot, midfoot, hallux-metatarsophalangeal zone-interphalangeal joints and metatarsophalangeal-lesser interphalangeal joints. The scale integrates subjective and objective data and comprises three sections: function, pain and alignment. The AOFAS has been used to evaluate different procedures such as trauma surgery, arthroplasties, arthrodesis, etc. It therefore has not been specifically designed to evaluate the function of the Achilles tendon, though it offers excellent reproducibility and clinical correlation^(19,20). Nevertheless, it has a number of limitations that must be taken into account. Firstly, the AOFAS has not been formally validated^(18,21). Furthermore, over half of the evaluated items are not considered to be especially important by either patients or physicians⁽²²⁾. Lastly, this tool must be evaluated by an examiner, which can generate inter-observer variability and reduce the validity of the results obtained. For all these reasons, it is currently not advised to use this scale on an isolated basis for evaluating patients with foot and ankle problems⁽¹⁸⁾.

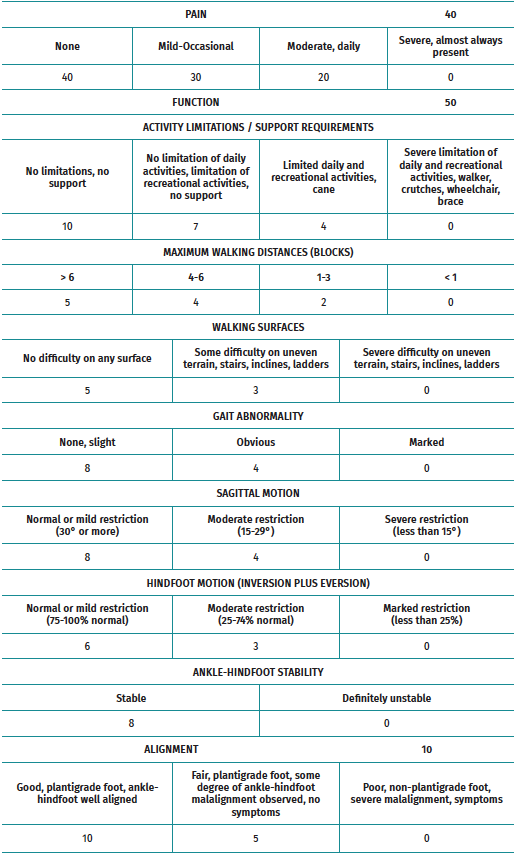

Table 3. AOFAS

European Foot and Ankle Score (EFAS)⁽²³⁾ (Table 4)

The EFAS is the assessment system of the European Foot and Ankle Society. In the same way as the previous scale, it is useful for evaluating the function of the ankle and subtalar, talonavicular and calcaneocuboid regions, and has been used to evaluate the treatment of fractures, arthroplasties, arthrodesis and instability procedures. This instrument is divided into 2 parts: a general questionnaire referred to pain and activities of daily living, and a section specifically dedicated to sports.

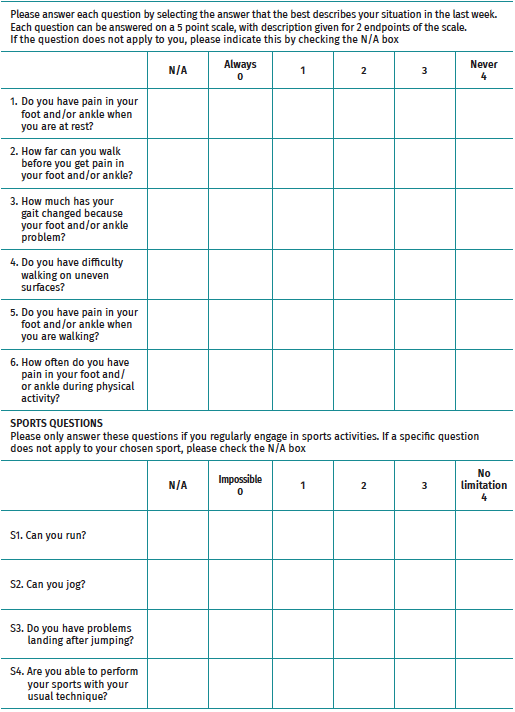

Table 4. EFAS

Foot and Ankle Outcome Score (FAOS)⁽²⁴⁾

The FAOS is a questionnaire entirely self-completed by the patient. It comprises 42 items that evaluate the outcomes based on 5 subscales (pain, other symptoms, activities of daily living, sports and leisure activities, and quality of life related to the foot and ankle). It appears to be useful for evaluating outcomes that are relevant for the patient and addresses ankle stability following ligament reconstruction.

Visual Analogue Scale-Foot and Ankle (VAS-FA)⁽²⁾

The VAS-FA is a visual scale that evaluates disorders of the foot and ankle. It has been validated for both healthy individuals and patients with disease conditions. The instrument is reliable and has been validated in a number of languages. The VAS-FA consists of 20 items divided into 3 groups: pain, function and others.

Foot Function Index (FFI)⁽²⁵⁾

The FFI is a subjective scale that consists of 23 items in its original description, divided into 3 subscales: pain, function and limitation of activity. All the variables are measured using a visual scale, where higher scores indicate greater disease. A number of subsequent versions have been developed, since the original scale could not be completed by different population groups, leaving too many unanswered questions⁽²⁶⁾. At present, all these subsequent versions have not shown sufficient validity compared with the SF-36. Its isolated use therefore cannot be recommended^(21,26).

Manchester-Oxford Foot Questionnaire (MOXFQ)⁽²⁷⁾

The MOXFQ is a scale entirely self-completed by the patient. It was originally designed to evaluate the outcomes of foot and ankle surgeries in clinical trials, and therefore proved useful only in the academic setting⁽²⁷⁾. It consists of 3 sections: pain, gait / difficulty standing, and social interaction, and higher scores are indicative of increased severity of disease. A short version, the MOXFQ-Index, has recently been introduced, with results comparable to those of the original MOXFQ, and possessing adequate validity compared with the SF-36⁽²⁸⁾.

Specific assessment of Achilles tendinopathy

The Victorian Institute of Sports Assessment–Achilles questionnaire (VISA-A)⁽²⁹⁾ (Table 5) is the only scale specifically developed to evaluate Achilles tendinopathy. It measures the severity of tendinopathy based on the assessment of pain, function and the impact upon activity. This instrument consists of 10 items: stiffness, pain on walking, pain on stretching, walking down stairs, standing on tiptoe, jumping on one leg, sports activity, pain on loading the tendon, and training time. The VISA-A uses a numerical rating scale from 0-100 points, where higher scores correspond to people with improved functional condition.

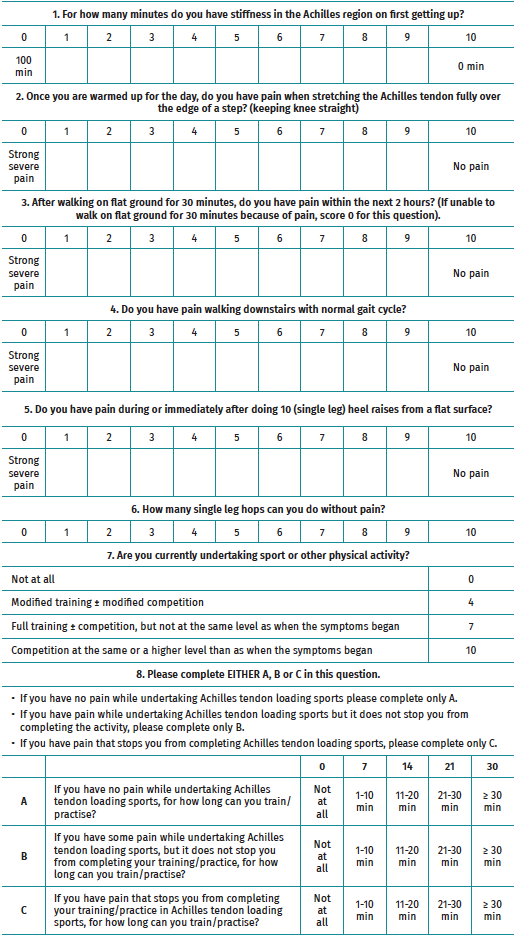

Table 5. VISA-A

It is easily understood by patients and has been shown to offer good clinical correlation⁽³⁰⁾. In addition, the VISA-A has been validated in Spanish⁽³¹⁾. In sum, it is considered to be the reference scale for assessing the severity of Achilles tendinopathies.

Discussion

The present review describes different radiological classifications of Achilles tendinopathy, and the most commonly used clinical assessment scales. Both tools are employed to better characterise disease and allow a more detailed description of the disease process, with a view to facilitating the therapeutic approach.

It is clear that most of the described classifications are based on the ultrasound findings. This is because the accessibility of ultrasound has caused it to become the first choice of use of imaging diagnostic technique in most cases. However, the ultrasound findings with demonstrated clinical correlation or of prognostic value are scarce⁽³²⁾. In 2018, Matthews et al. published a systematic review of the ultrasound classifications of Achilles tendinopathies, with the aim of determining the most widely used parameters⁽³³⁾. Likewise, they conducted a meta-analysis to determine whether any ultrasound finding was of prognostic value in relation to the development of symptoms. The study included 19 publications, and the parameters most commonly used for establishing a classification were found to be the thickness of the tendon, echogenicity, and the presence of vascularisation. These findings were of prognostic utility in reference to the development of clinical symptoms, especially when 3 parameters were measured simultaneously instead of only 2. The authors therefore concluded that although there is great variability in the published ultrasound classifications, the most reliable tools in terms of prognostic value should at least include the aforementioned 3 parameters. However, no classifications including these parameters and applied to clinical practice on a generalised basis have been developed to date. In addition, as has been commented above, very few classifications are of prognostic value. As a result, it is currently not possible to recommend basing therapeutic decisions exclusively on the radiological stage of the disease.

The assessment scales allow numerical quantification of the severity of the disorder. An ideal assessment tool should be able to record clinically relevant changes, and should be reliable, validated and reproducible. Objective measurements, such as radiological parameters, might not adequately correlate to the patient symptoms or quality of life⁽²⁾. No clear consensus has been reached regarding which clinical assessment scale to use in patients with Achilles tendinopathy^(3,4).

Curiously, the scale most widely used to assess disease of the foot and ankle - the AOFAS - has not demonstrated sufficient validity in comparison with other less recognised scales such as the FFI, the FAOS or the FAAM. As a result, its isolated use for assessing the outcomes cannot be recommended⁽¹⁸⁾. These other scales, including the MOXFQ, do not specifically address Achilles tendinopathy, and have been validated for more general disorders of the foot and ankle. The exception could be the FAAM, which has been validated for assessing chronic ankle instability. Thus, the VISA-A is seen to be the most specific and reliable option for assessing Achilles tendinopathy, and its use should thus be recommended, associated to a generic health questionnaire.

The main limitation of the present study is that it is not a systematic review, and no analysis is made of the results described in the literature. It is a narrative review made to describe the radiological classifications and the clinical assessment scales used in patients with Achilles tendinopathy.

Conclusions

The ultrasound findings that appear to be of prognostic value in evaluating Achilles tendinopathy are the thickness of the tendon, the presence of neovascularisation, and echogenicity measured simultaneously. To date, no radiological classification has included these items or is able to offer adequate prognostic correlations; as a result, no concrete classification may be considered preferable to the rest. At least both a general and a specific health questionnaire should be used. In this regard, the VISA-A is the only specific Achilles tendinopathy assessment scale developed to date, and has been shown to be reproducible and offer good clinical correlation.
